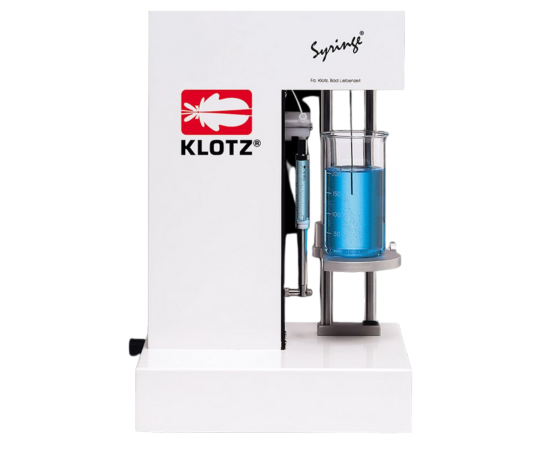

Markus Klotz Germany Make Liquid Particle Counter - Syringe Model

Feature	Details
Working Principal	Light Absorbance or Light Extinction
Used for	Cleanliness Control of Water, Pharmaceutical Solutions, Chemicals and Beverages
Sample Syringe	1 mL, 10 mL and 25 mL
Lowest Measured Volume	10 uL
Magnetic Stirrer	Optional
Sensor - LDS 30/30	For Pharma Application, 30mL/Min Flow Rate, 0.9 to 139 Micron Size Range, 120000 Maximum Concentration Particle/mL
Sensor - LDS 45/50	For Pharma and Oil Application, 50mL/Min Flow Rate, 1 to 160 (400) Micron Size Range For Water, 1.5 to 100 Micron Size for OIL, 22000 Maximum Concentration Particle/mL
SW-CA Software	For Pharmaceutical Guidelines, 21 CFR Part 11 Compliance with User Defined Recipes Creation

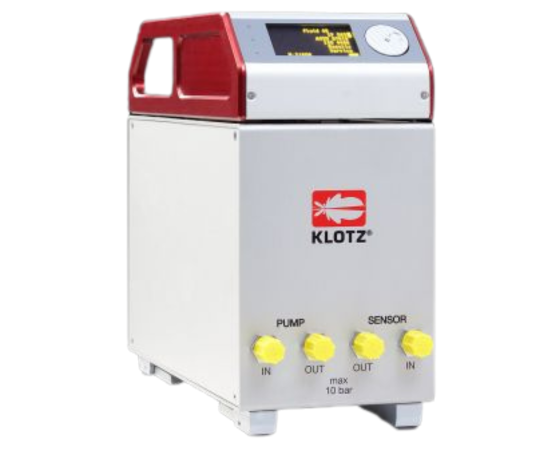

Markus Klotz Germany Make Liquid Particle Counter - PCSS Fluid Lite

Feature	Details
Working Principal	Light Absorbance or Light Extinction
Used for	PCSS Fluid Lite is used for counting particles in fluids from pressure pipes and out of bottles
Displacement Volume	10 mL
Inlet Pressure	10 Bar
Data Memory	600 measurements
Sensor - LDS 30/30	For Pharma Application, 30mL/Min Flow Rate, 0.9 to 139 Micron Size Range, 120000 Maximum Concentration Particle/mL
Sensor - LDS 45/50	For Pharma and Oil Application, 50mL/Min Flow Rate, 1 to 160 (400) Micron Size Range For Water, 1.5 to 100 Micron Size for OIL, 22000 Maximum Concentration Particle/mL
Measuring Device	For online measurements, for measurements in the lab and due to its compact design suitable for mobile use on site
Option	Battery Operation
